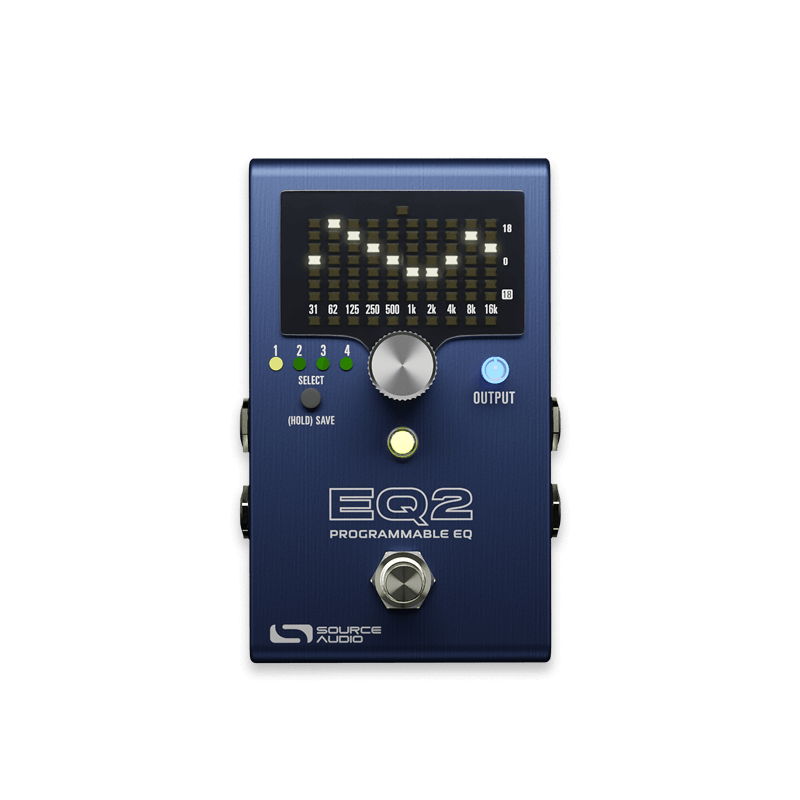

EQ2 Programmable Equalizer
The EQ2 Programmable Equalizer is the most powerful and advanced equalizer pedal on the planet. Building on the legacy of the original Programmable EQ–a proven favorite that landed on the pedalboards of six-string icons David Gilmour, Steven Wilson, and John Mayer–the EQ2 takes equalization to the next level.
Ships from California.
About this product
Similar products
Sound Design
-

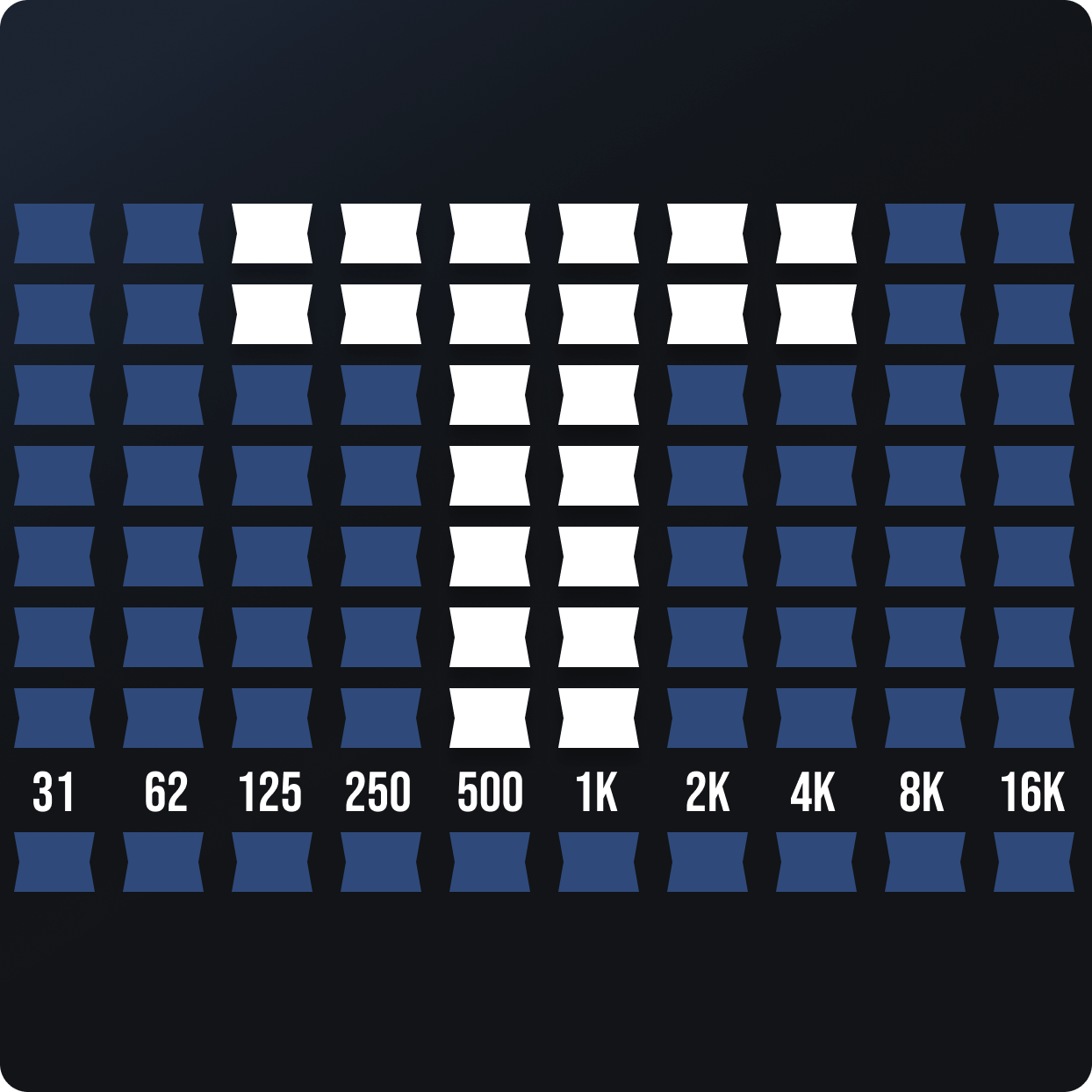

10-Band Graphic Equalizer
Use the EQ2's 10 adjustable frequency bands ranging from 31Hz to 16kHz with 18dB boost or cut to sculpt the perfect tone.
-
Full Parametric Control
Each of EQ2's 10 bands can be moved anywhere up or down the frequency spectrum, from 20 Hz to 20 kHz.
-
Channel Gain Control
Cut or boost the overall output gain as much as +12dB over unity gain. Independent gain controls allow for separate Output level on each channel.
-
Adjustable Q Factor (Bandwidth)
Each band’s Q (bandwidth) can be made to be wider or up to 10 times narrower for ultimate tone-sculpting.

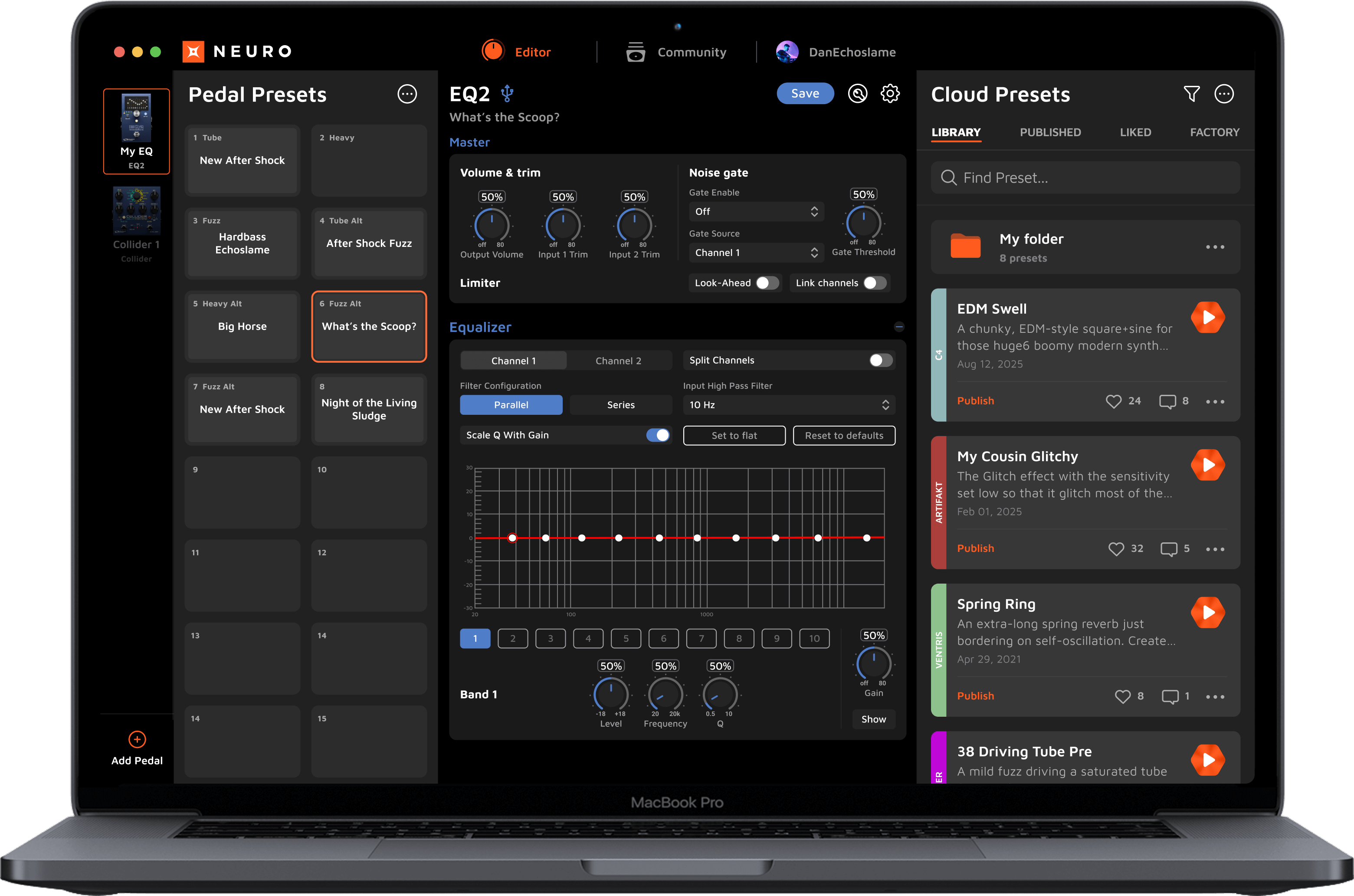

Increase Your Pedal Functionality 10x with Neuro 3

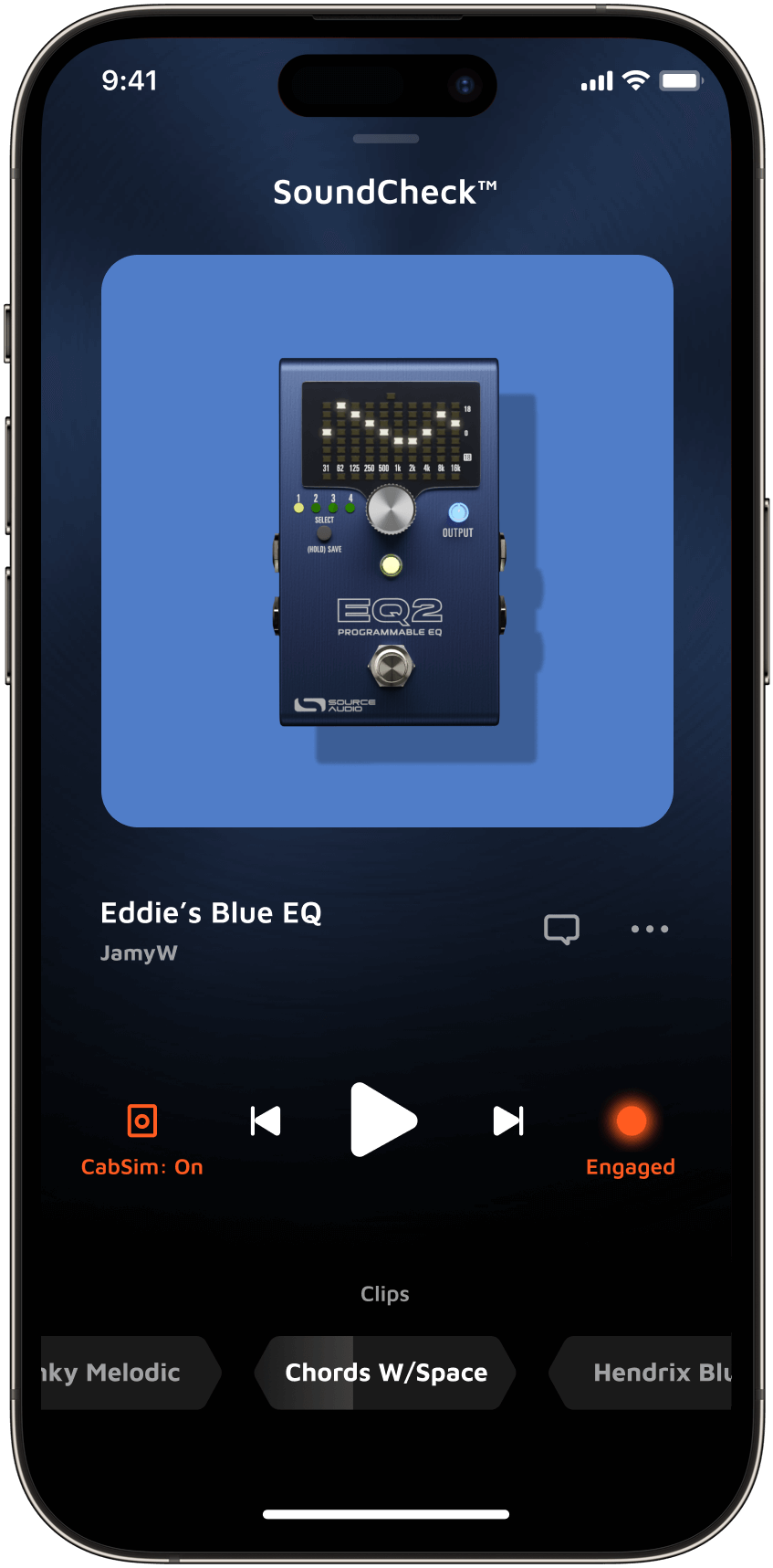

Connect the pedal to the free Neuro software (Mac / Windows) or Neuro Mobile App (iOS / Android) to download, customize, and share effects for your One Series pedal
EQ2 Programmable Equalizer Features
-

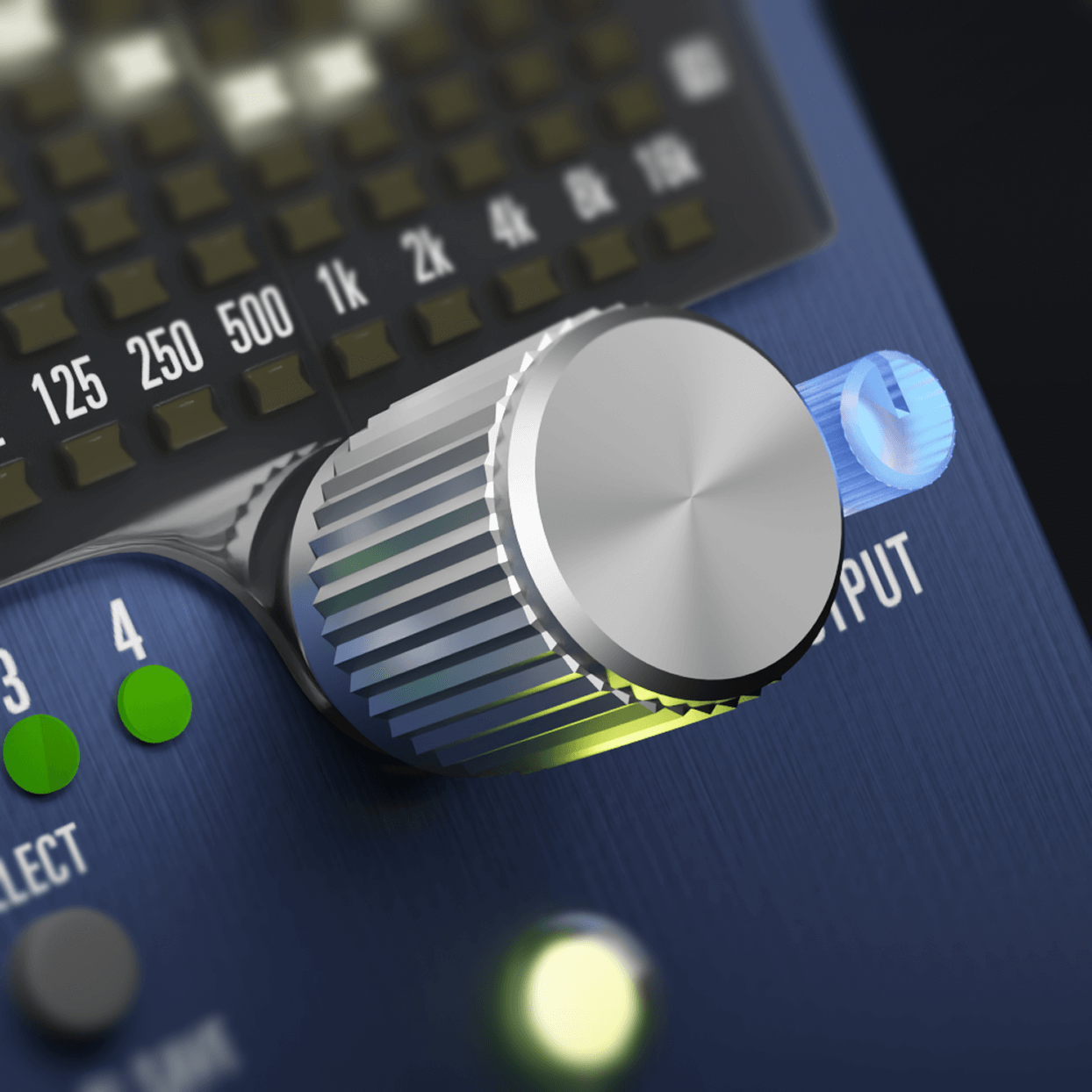

128 Preset Locations
4 onboard presets, 8 presets in Preset Extension Mode, or 128 presets by turning the encoder while holding the Preset Select button.
-

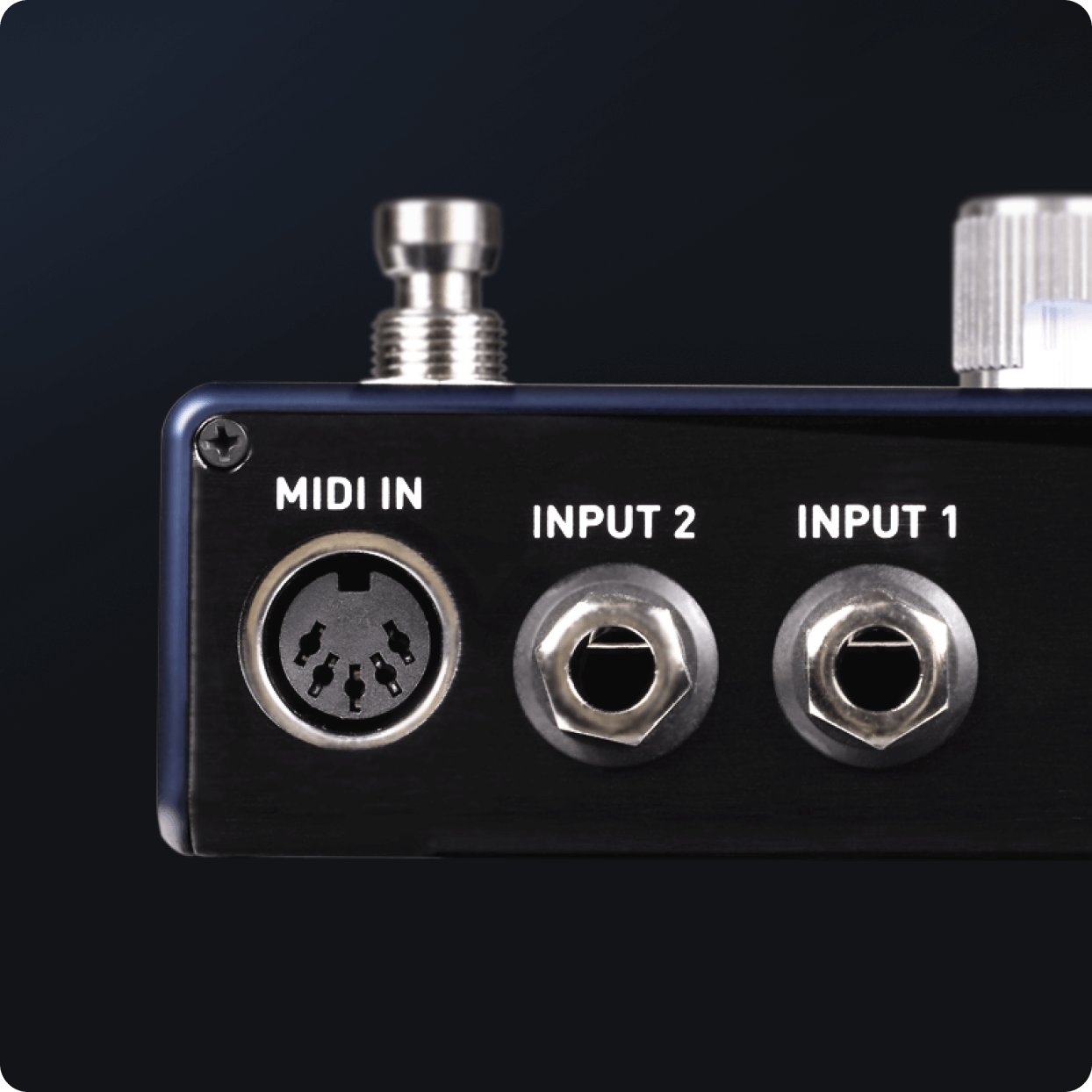

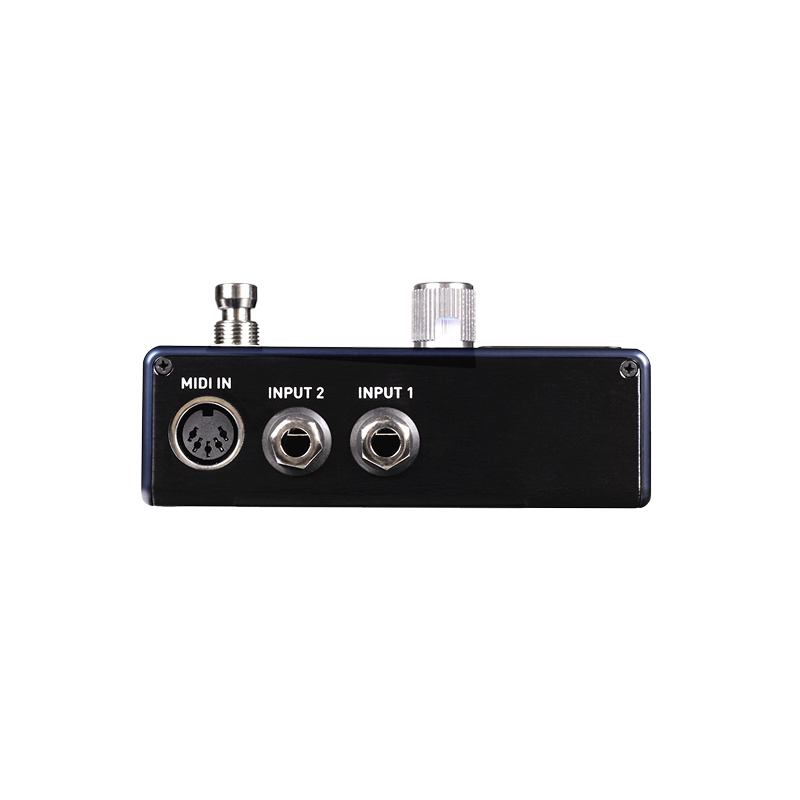

Stereo I/O
Use the Editor’s routing options in conjunction with Split Mode to get the most out of EQ2’s flexibility.
-

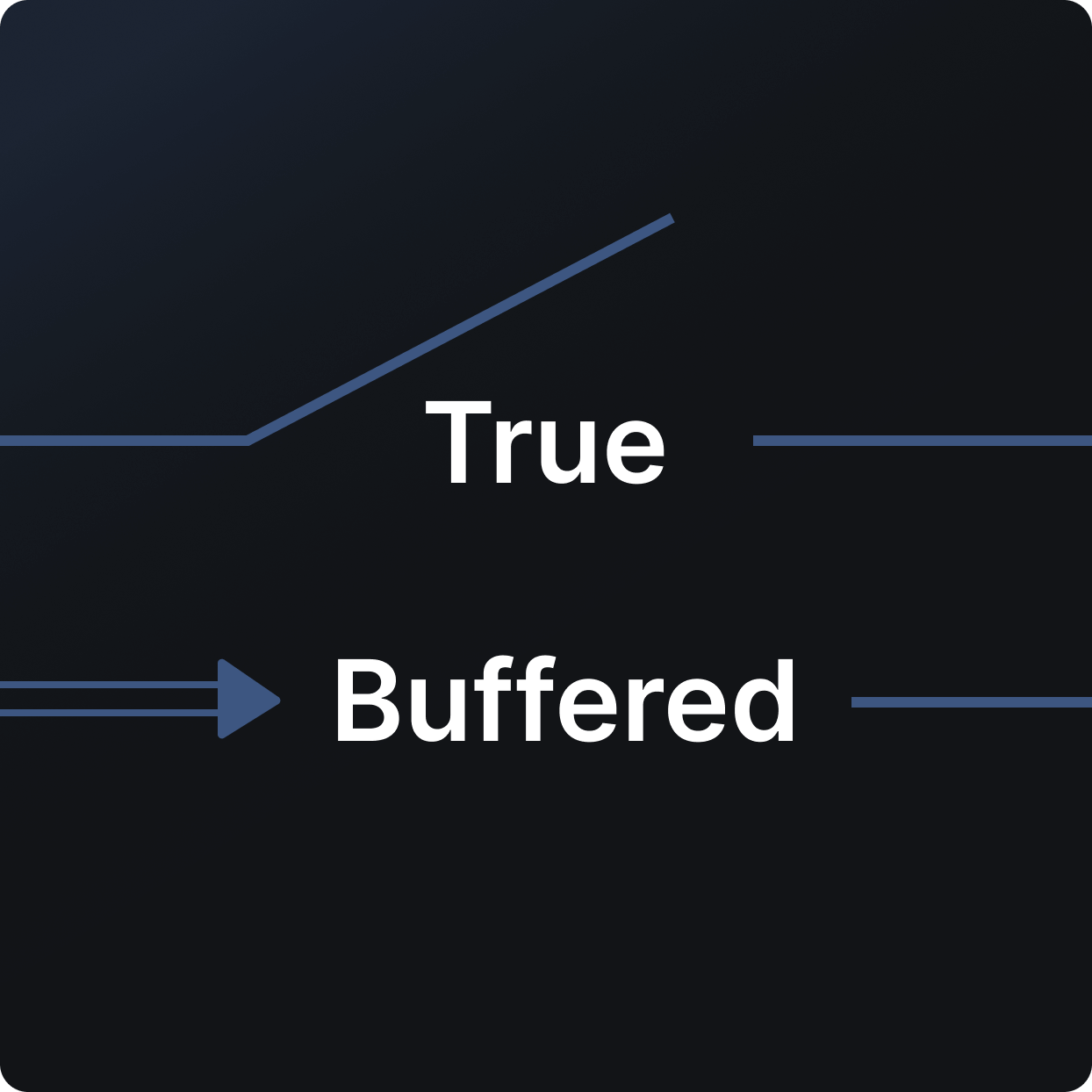

Universal Bypass™
Select between high-quality signal relays for true bypass and transparent buffers for analog bypass.
-
Chromatic Tuner
An onboard chromatic tuner adds to the flexibility and feature-set of the dynamic EQ2.
-

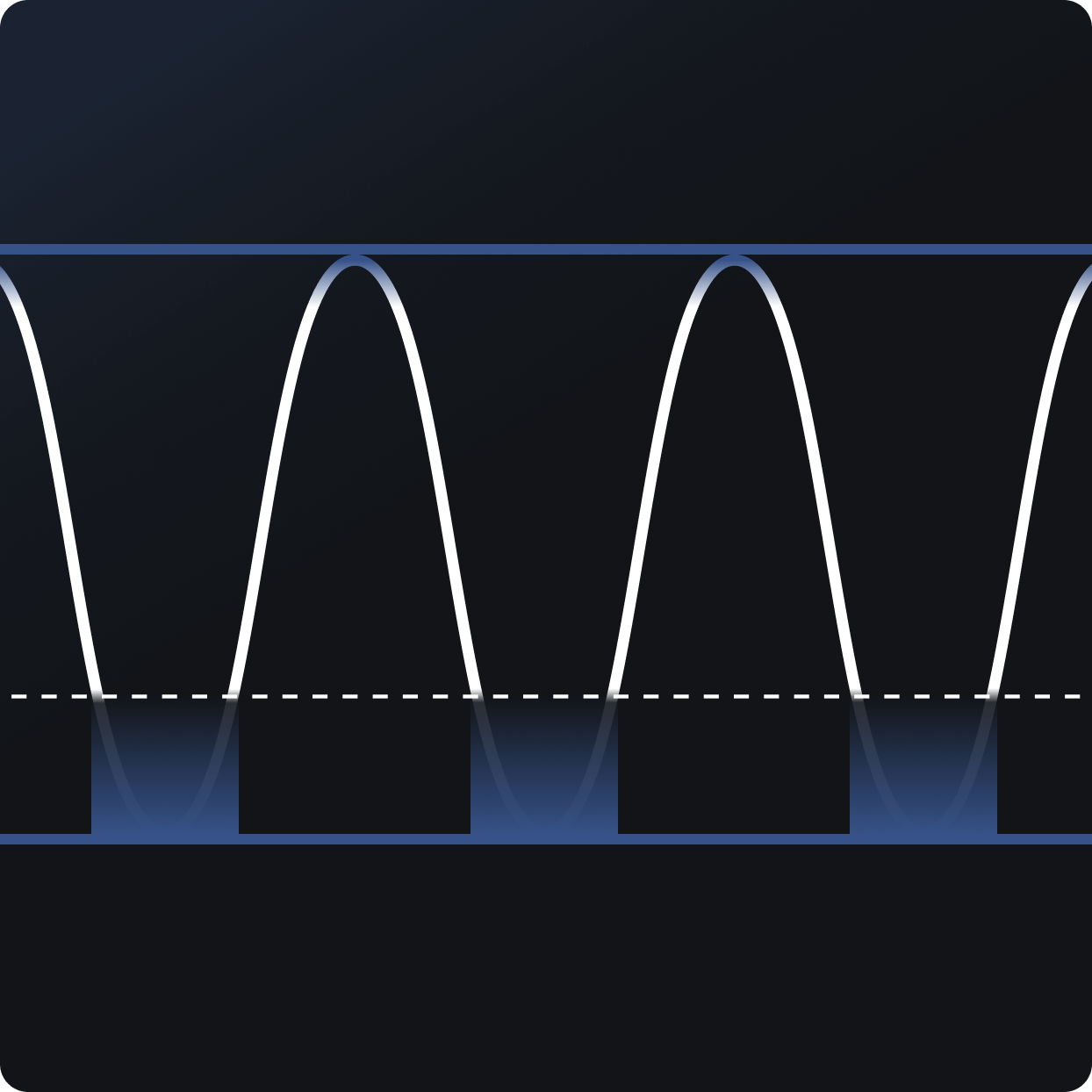

Noise Gate & Limiter
An optional noise gate threshold and an optional limiter to eliminate digital clipping can be configured in Neuro 3.
-
Dual Equalizers
Run two completely independent EQ curves in series, parallel, or “split stereo” mode, which routes a different EQ curve to each stereo output.
MIDI
PC Messages
Save up to 128 effect presets recallable with MIDI PC messages.
CC Messages
Use the Neuro 3 Desktop Editor to easily map MIDI Continuous Controller (CC) messages to a comprehensive list of parameters.
Neuro Hub
Connect the pedal to the Neuro Hub or any MIDI Adapter and use MIDI CC messages to control parameters or recall presets.
Specifications
| Housing | Brushed anodized aluminum |
|---|---|
| Pedal Weight | 0.625 lb |

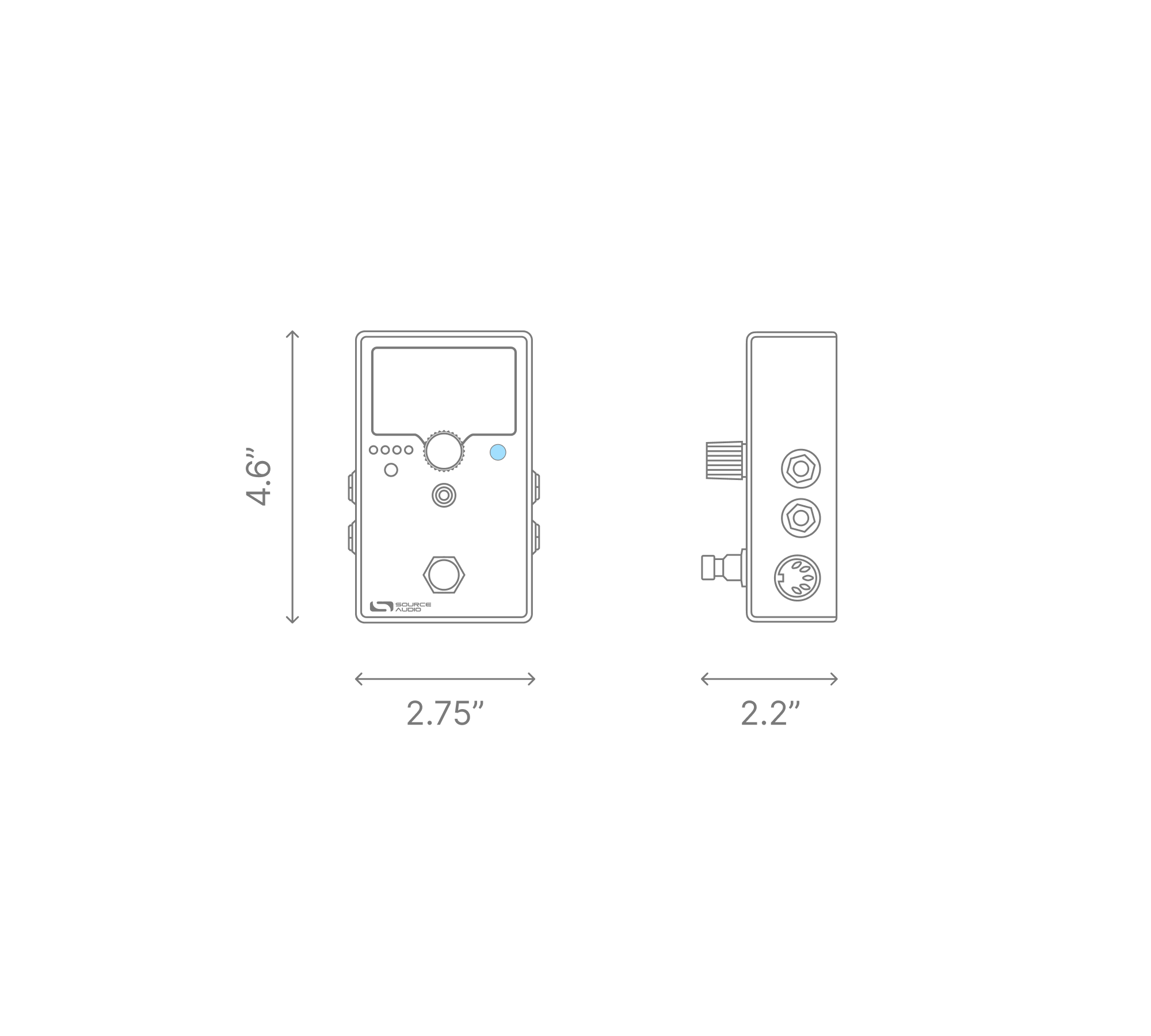

| Pedal Dimensions | 4.6 × 2.75 × 2.2 inches |
| Power Consumption | 9V DC, 180 mA |
| What's in the box | Pedal Mini USB to USB-A cable USB-A to USB-C adapter Quick reference card |
