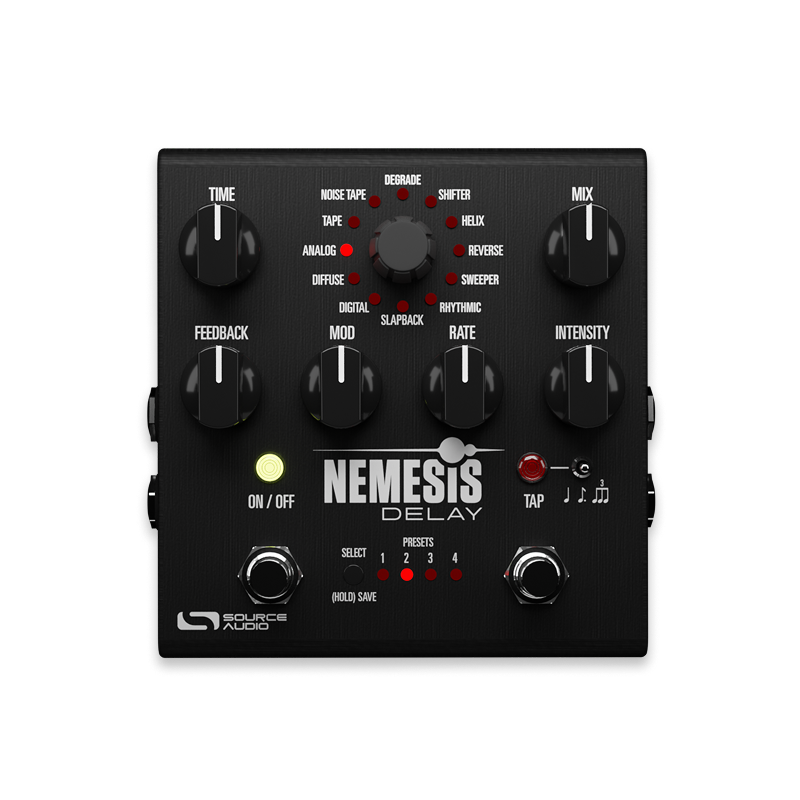

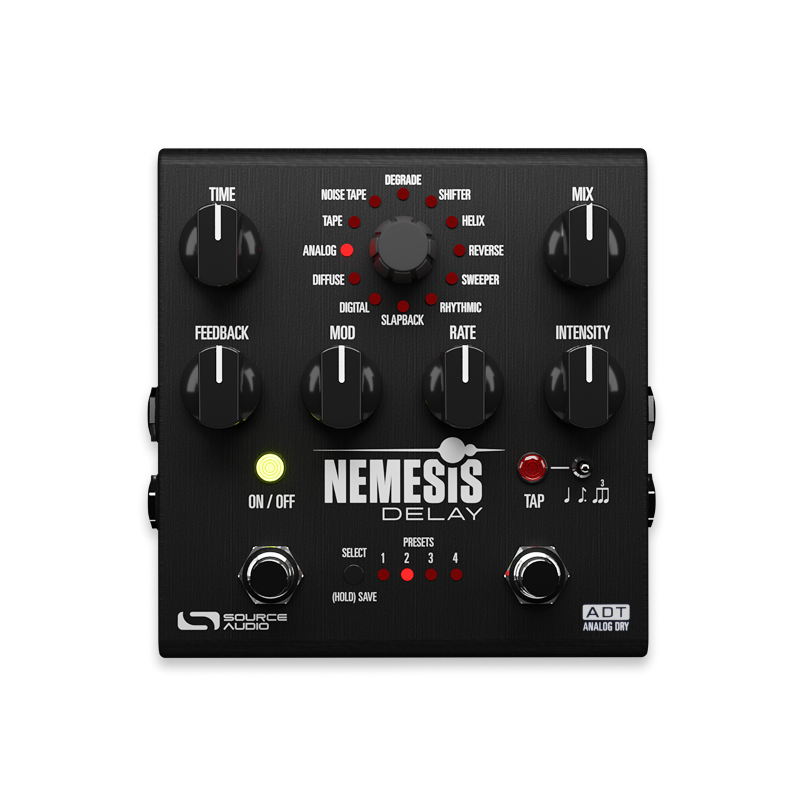

Nemesis Delay ADT
A powerful multi-delay pedal with unmatched tone and flexibility. The Nemesis does it all, from classic tape and analog inspired sounds to modern pitch-shifting and reverse delays.
Ships from California.
About this product
Similar products
Sound Design
At the end of the day, it's all about the sound. Nemesis features a beautifully engineered collection of effects that cover the full spectrum of delay possibilities, from faithful recreations of iconic tape, rotating drum, oil can, and analog bucket-brigade delays to modern sounds like reverse, pitch-shifting, and filtered delays. Every effect in the Nemesis Delay ADT was carefully crafted through intensive research and painstaking A/B testing to deliver exceptional precision and unparalleled fidelity.
-
Slapback
Synonymous with rockabilly guitar effects, Slapback delivers a short single-repeat echo based on early tape delay machines.
-
Digital
A classic clear digital delay with optional delay time modulation. The intensity knob controls filtering allowing for high pass or low pass filters for a warm delay.
-
Diffuse
A delay line with a diffusion effect that smears the attack of the repeated signal, softening it creating a lovely, ethereal sound.
-
Analog
The sound of classic bucket brigade analog delays. Successive delays are warm, resonant and increasingly lo-fi.
-
Tape
A detailed re-creation of a vintage Echoplex tape delay. The Tape engine captures all the characteristic warmth, saturation, and flutter that gave original Echoplex its timeless charm.
-
Noise Tape
A re-creation of classic fixed-head tape delays. Noise Tape is grittier and darker than the Tape engine, capturing the sound of old or damaged tape.
-
Resonant
Inspired by the Carbon Copy analog bucket brigade delay. Resonant is characterized by its quickly degene-rating echoes and low frequencies.
-
Shifter
A delay with polyphonic pitch-shifting on the delayed signal. Choose from octave (either up or down), minor or major 3rds, 4ths, and 5ths.
-
Helix
This angelic delay effect combines reverse delay with an octaver to create a shimmering delay that disappears into the upper frequency range.
-
Reverse
The classic reverse tape sound made popular by guitar players in the '60s. Use the CONTROL 2 knob to add a second delay and envelop your instrument in a psychedelic swirl.
-
Oil Can
Captures the sound of a 1950’s Tel-Ray Electronics Sound Chamber, an oil can delay famous for its rotating oil filled canister that created haunting echoes.
-
Drum Echo
This warm, analog-sounding delay is inspired by the legendary Binson Echorec, the multi-head delay unit famously used by Pink Floyd. Choose from eight distinct rhythmic patterns and experience its signature cascading echoes.

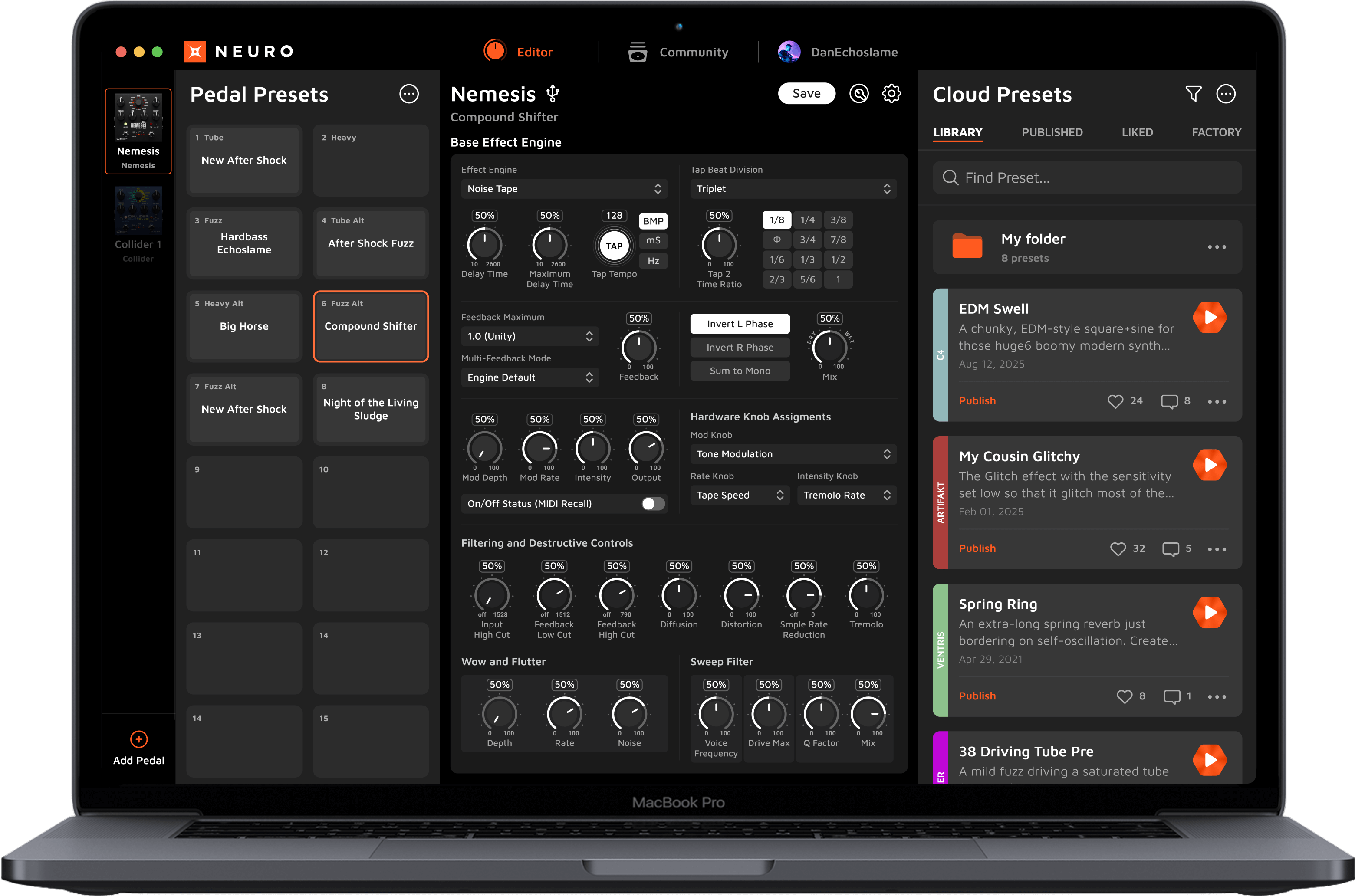

Increase Your Pedal Functionality 10x with Neuro 3
Connect the pedal to the free Neuro software (Mac / Windows) or Neuro Mobile App (iOS / Android) to download, customize, and share effects for your One Series pedal
Nemesis Delay ADT Features
-
26 Delay Engines
12 onboard delay engines accessible via the center selector wheel, plus an additional 14 delays in Neuro App.
-
Filtering and Destructive Controls
Unprecedented control over the tone and timbre of your delay repeats. Use controls like High and Low Cut Filtering, Diffusion, Distortion and more.
-
Wow and Flutter
Dial in the sweet imperfections of an aging tape delay. The Wow and Flutter Depth, Rate, and Noise controls add randomized motion to your delay signal.
-
128 Preset Locations
8 presets available via the pedal's controls, and store up to 128 presets available via MIDI.
-

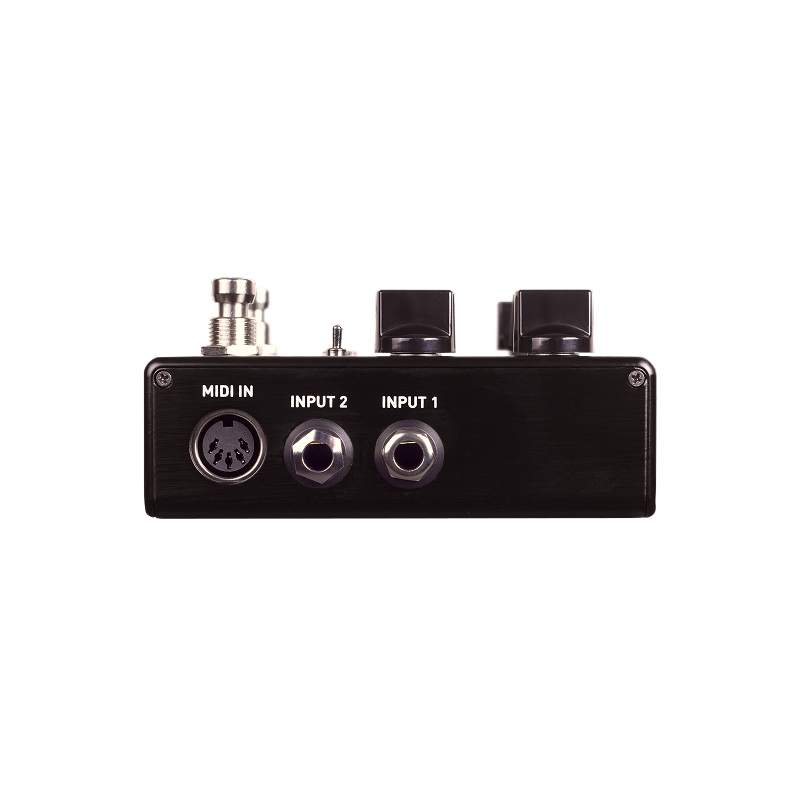

Stereo I/O
Create dramatic stereo ping-pong delays, stereo phase inversion, or set up an external effects loops, pre or post delay.
-

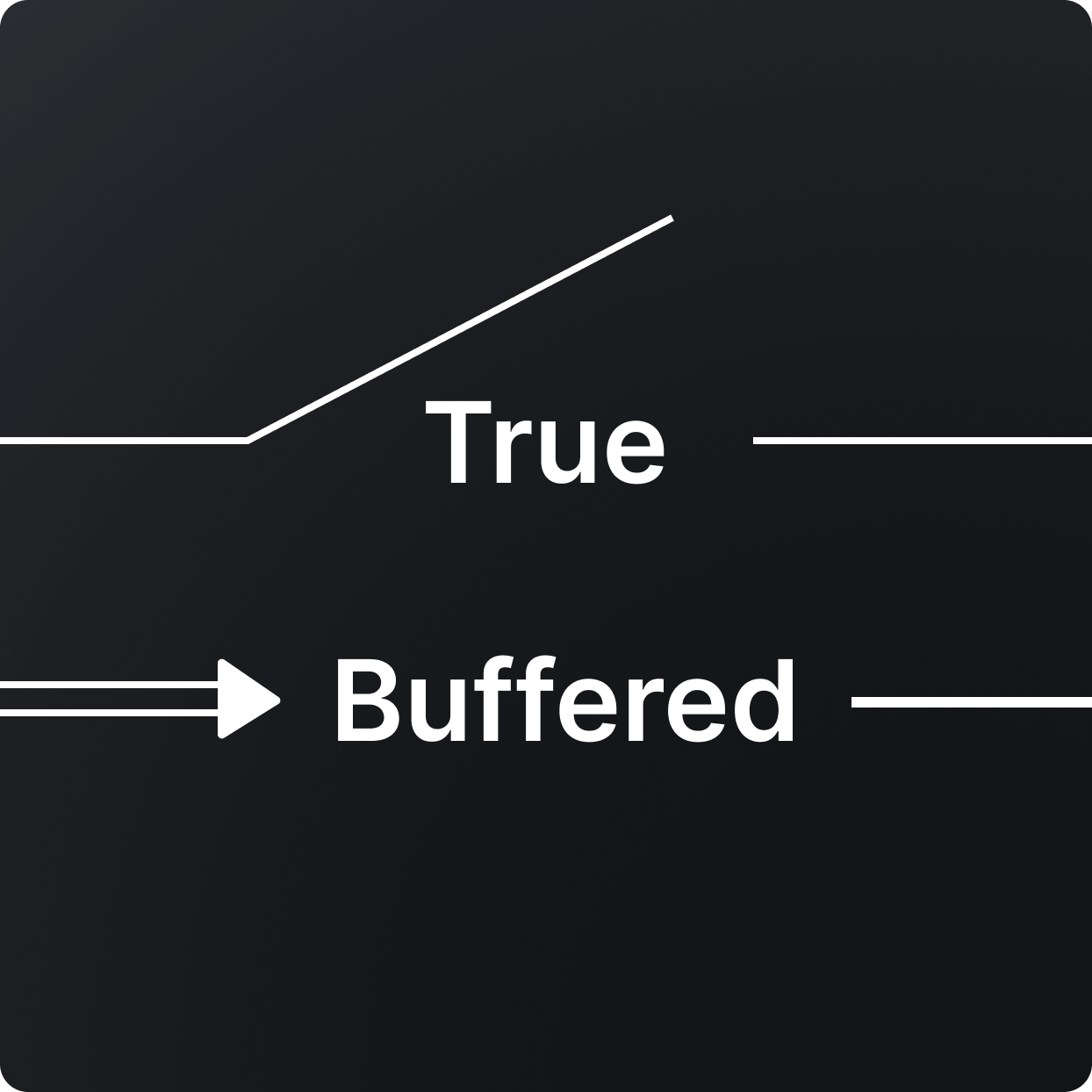

Universal Bypass™
Select between high-quality signal relays for true bypass and transparent buffers for analog bypass.
-

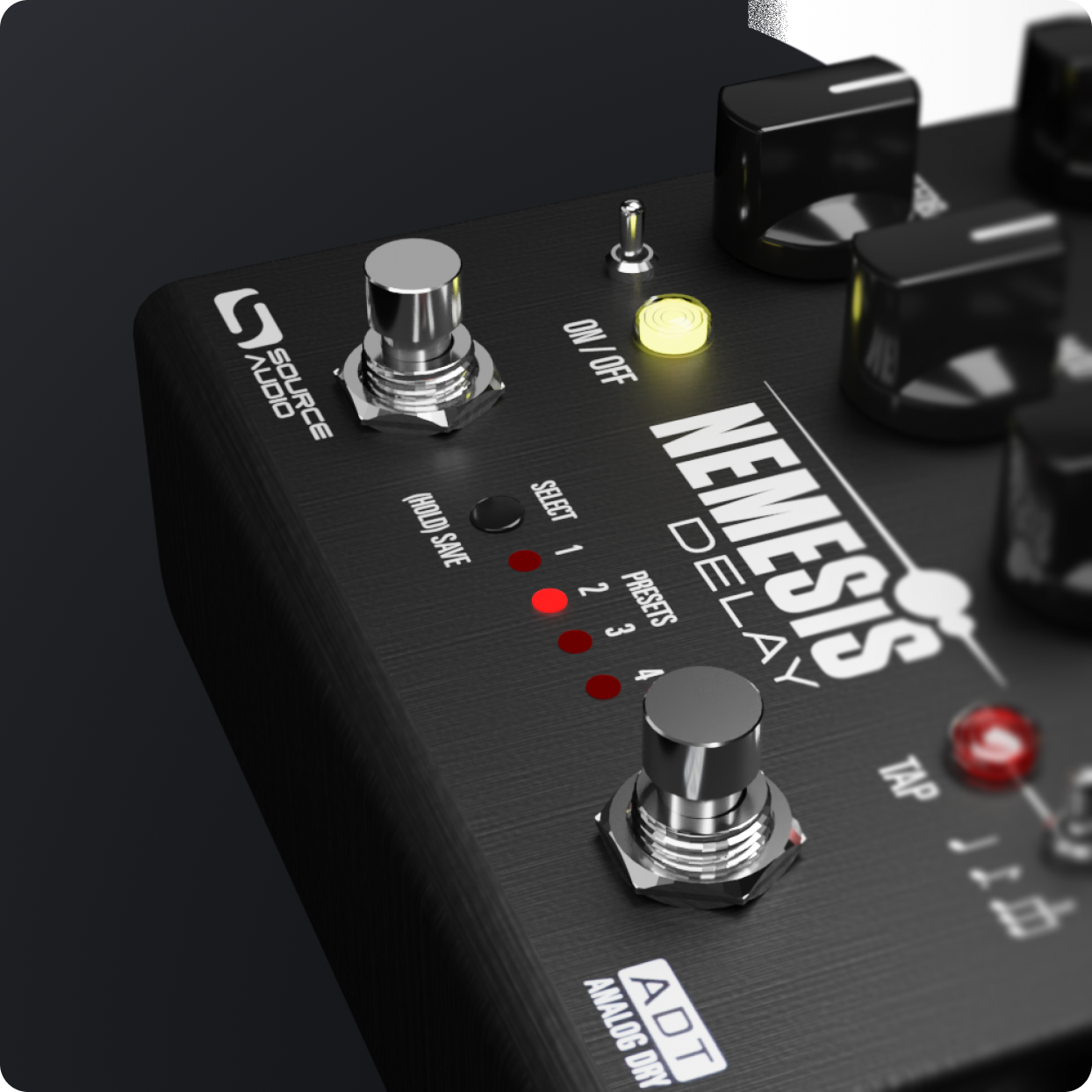

Analog Dry Through
The instrument’s dry signal remains completely unprocessed, maintaining a 100% pure analog signal path that runs alongside the pedal’s delay effects.
-

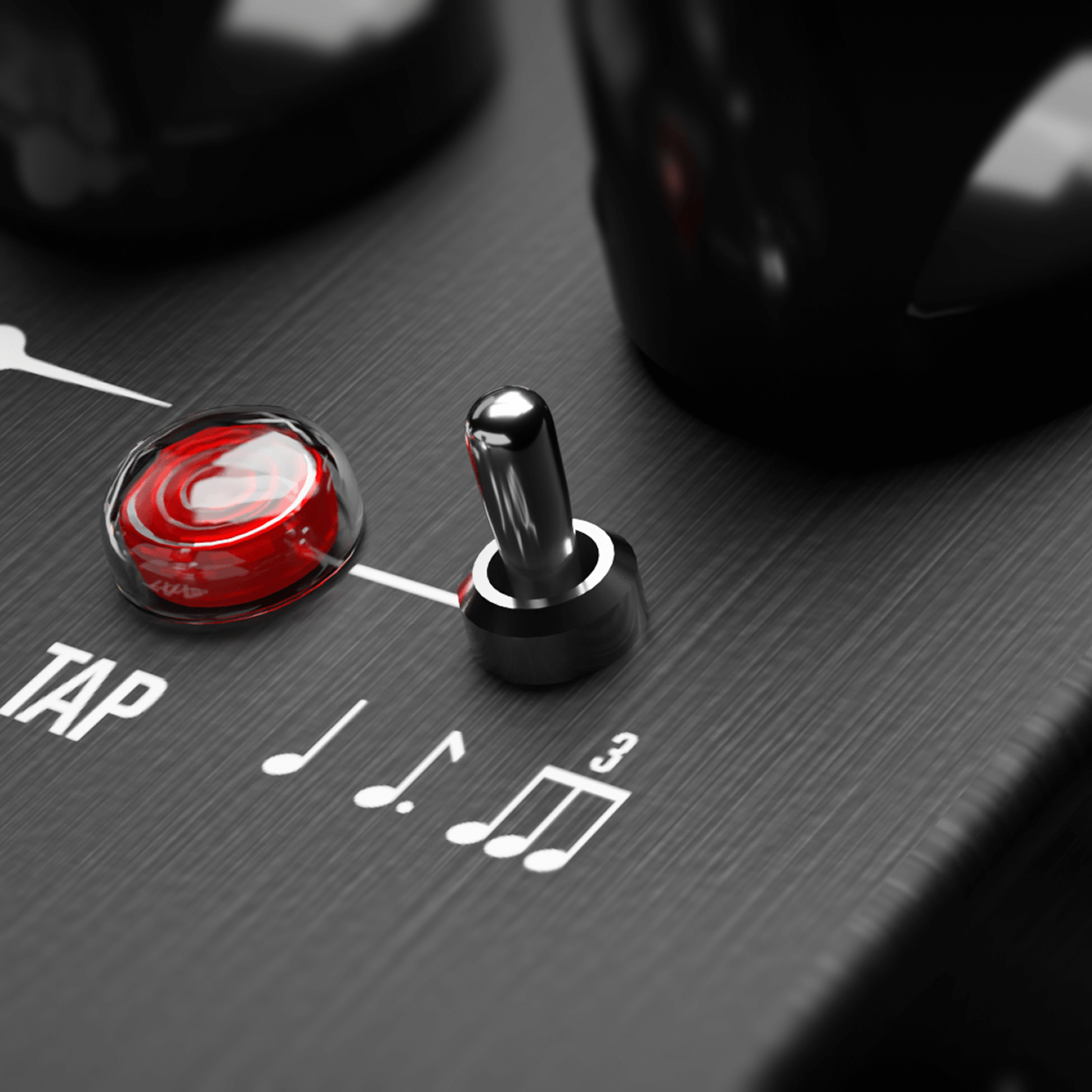

Tap Tempo Switch
Tap in the delay time with the onboard tap tempo switch. Beat divisions include quarter notes, dotted eighth, and triplets.
-

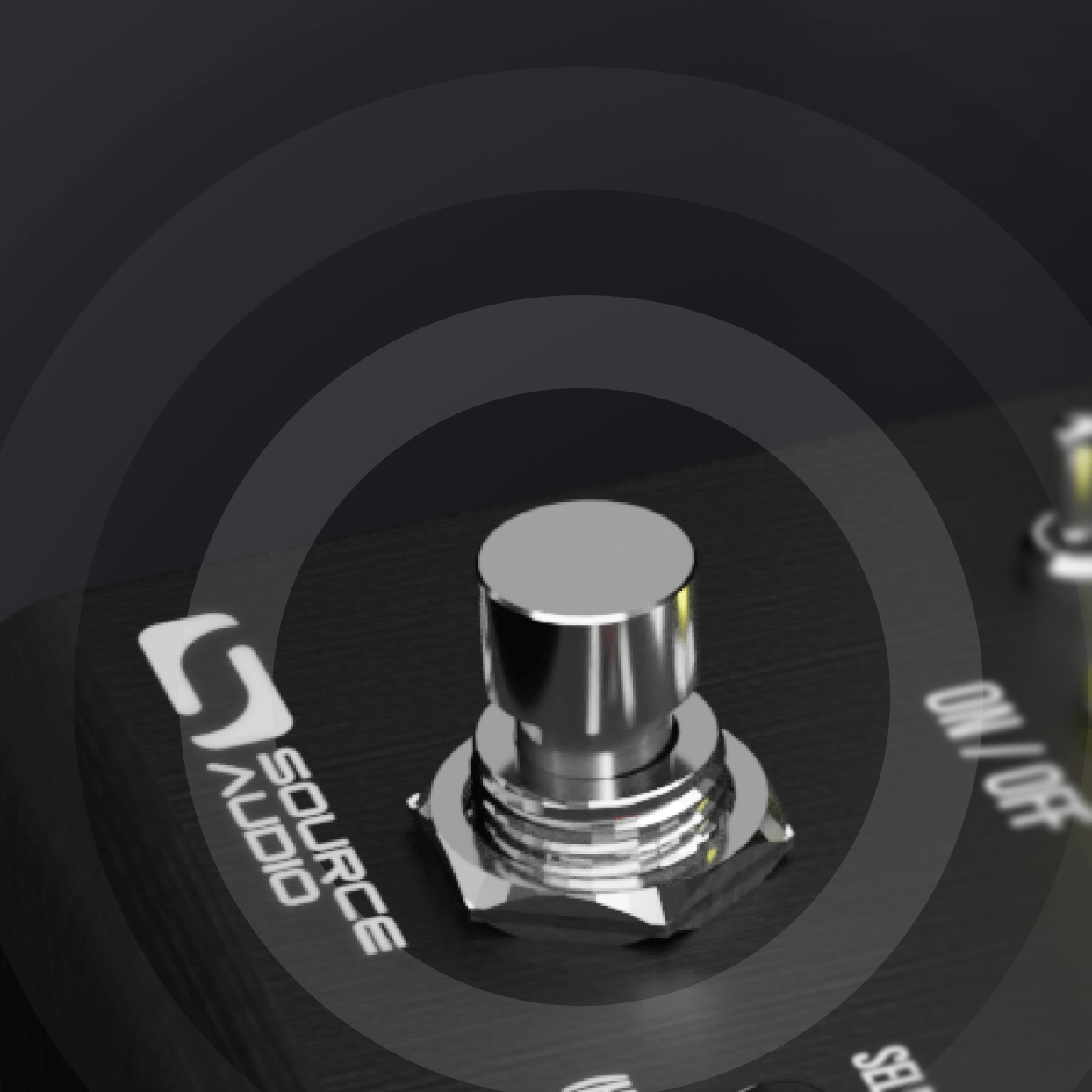

Freeze Control
Use the tap tempo switch to freeze a small portion of the delay in a continuous loop.
-
External Expression Control

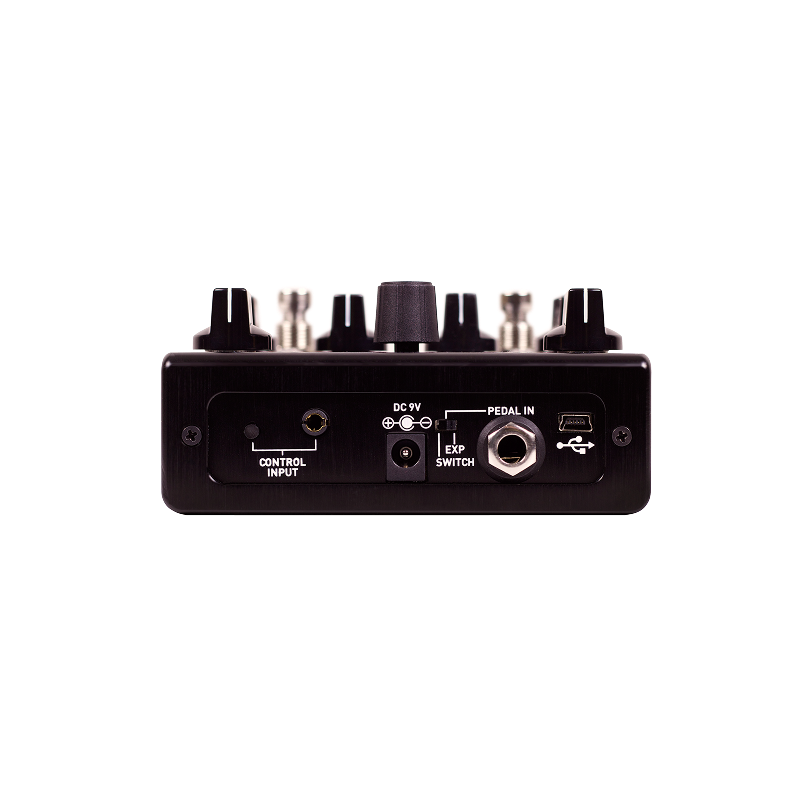

Connect a ¼” passive TRS expression pedal (Tip=Expression / Ring=Power / Sleeve=Ground) to the PEDAL IN jack and simultaneously control up to 3 parameters.

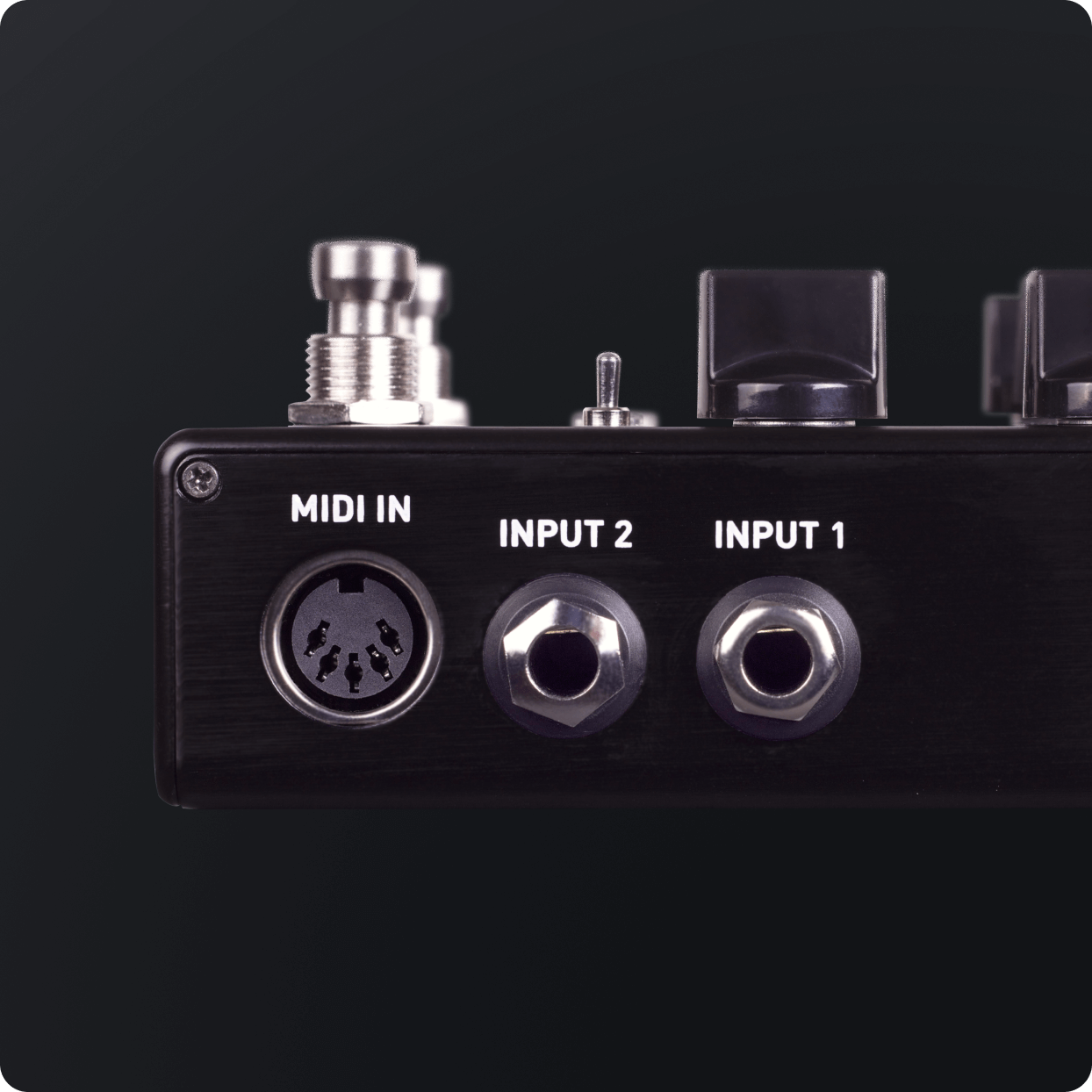

MIDI
PC Messages
Save up to 128 effect presets recallable with MIDI PC messages.
CC Messages
Control multiple knob parameters simultaneously, even those that are not assigned to control knobs (as well as output level). Map an independent depth and direction path for each.
MIDI Clock
Sync your delay time with external MIDI clock messages.
Specifications
| Housing | Brushed anodized aluminum |
|---|---|
| Pedal Weight | 1 lb |
| Pedal Dimensions | 4.6 × 4.4 × 2.2 inches |
| Power Consumption | 9V DC, 200 mA |
| What's in the box | Pedal Mini USB to USB-A cable USB-A to USB-C adapter Quick reference card |
